New Units » Arctic Cat » MudPro 650 H1
Model Quick Search

$8,599.00
$8,149.00
$450.00

2010 Arctic Cat MudPro 650 H1

Qty 1

Now until September 30, 2010

Request a Quote Financing Calculator Request a Brochure Financing Form

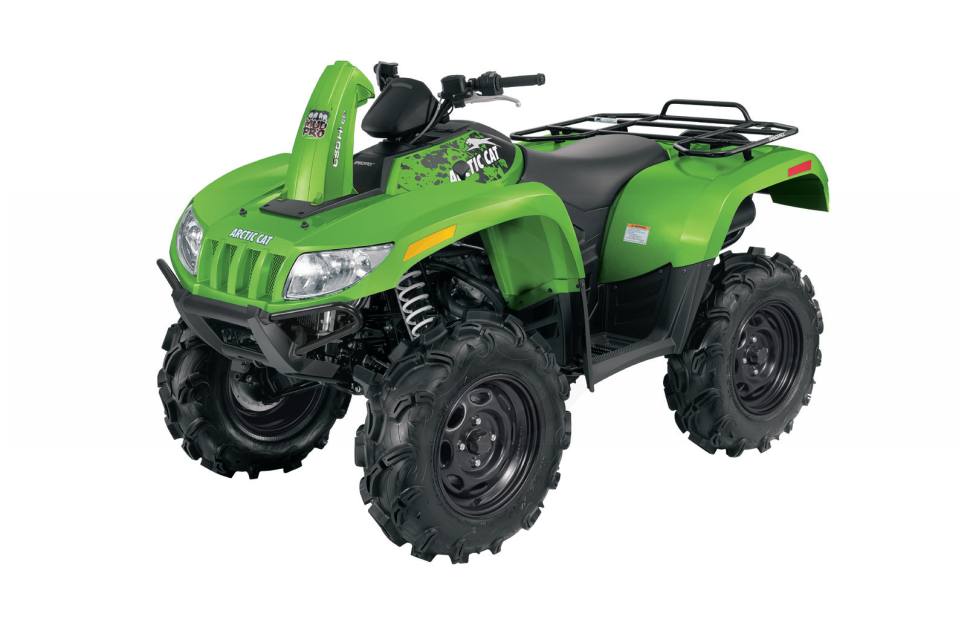

Click here to view full image.

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

You need an ATV that cuts through the muddiest terrain like a hot knife through butter, but won't cut into your budget. Consider the MudPro 650 your all-terrain mud pit racer at a price you've been looking for. The 641cc carbureted engine delivers high-quality performance in the face on the toughest competition. The elevated snorkel air intake keeps the clean air pushing to the engine, maximizing its big-time horsepower. And instead of aluminum, we've included effective steel rims on this monster to keep the price low and the durability high, no matter what gunk and grime you're barreling through. A rear receiver and injected molded body panels make this a rugged, take-no-prisoners ATV. And one that positively won't let you down when you're in the thick of it.

  • Mud-Pro suspension - Boasts 14" of ground clearance and 10" of suspension travel, providing a full range of suspension articulation for full tire contact in all types of terrain.
  • 650 H1 Engine - Need a time-tested engine with a proven performance record? This 641cc, liquid-cooled engine has all you need. The "H" in its "H1" title stands for hemispherical-shaped heads, delivering more efficient combustion resulting in better performance. With a single cylinder and a single overhead cam, this engine will help you define yourself as a competitor to be reckoned with.
  • Digital Gauge - Digital speedometer readings with integrated warning system includes a clock, dual tripmeter, hour meter, fuel gauge and coolant temperature.
  • Electric 2WD/4WD and Front Differential Lock - When the going gets tough, shift from 2-wheel to 4-wheel drive on the fly with just a push of a button. For even more traction, activate the front differential lock by moving the switch to the left.
  • Maxxis® Zilla Mud Tires - One look at the big one-inch treads on these huge 14" wheels, and you know this machine can chum through the deep and sticky mud holes in competition. These tires not only deliver ultimate traction and flotation, but are superdurable as well. After all, who knows what's under all that mud?
  • Snorkel Air Intake - An elevated snorkel-design air intake delivers clean air to the engine. The EFI is specifically tuned to maximize horsepower with the new snorkel design.
Specifications
  • Engine Type: SOHC, 4-stroke, 4-valve
  • Bore & Stroke: 98 x 85 mm
  • Cooling System: Liquid with fan
  • Fuel Capaciy: 5.7 gal / 21.6 L
  • Alternator Capacity: 25.0 amps
  • Speedometer: Digital
  • Odometer: Digital
  • Transmission: Automatic CVT with EBS, Hi/Lo Range and Reverse
  • Drive System: 2/4 WD + Diff Lock
  • Front Brakes: Hydraulic Disc
  • Rear Service Brakes: Hydraulic Disc
  • Front Suspension: Double A-Arm
  • Front Travel: 10 in / 25.4 cm
  • Rear Suspension: Double A-Arm
  • Rear Travel: 10 in / 25.4 cm
  • Front Tires (Pressure): 28 x 9-14 (5)
  • Rear Tires (Pressure): 28 x 9-14 (5)
  • Overall Length: 84.8 in / 215.4 cm
  • Overall Width: 47.5 in / 120.6 cm
  • Overall Height: 51.8 in / 131.6 cm
  • Wheelbase: 50 in / 127 cm
  • Ground Clearance: 14 in / 35.6 cm
  • Dry Weight: 725 lbs / 328.9 kg
  • Rear Rack Capacity: 200 lbs / 90.8 kg
  • Towing Capacity: 1,050 lbs / 476.3 kg
  • Color Options: Lime

Specifications

Engine
Engine Type SOHC, 4-stroke, 4-valve
Displacement 641 cc
Bore x Stroke 98 x 85 mm
Engine Cooling Liquid with fan
Alternator 25.0 amps
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 28 x 9-14
Rear Travel 10 in. (25.4 cm)
Rear Suspension Double A-Arm
Rear Brake Type Hydraulic Disc
Rear Tires 28 x 9-14
Dimensions/Capacities
Dry Weight 725 lbs. (328.9 kg)
Rear Rack Capacity 200 lbs. (90.8 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.7 gal (21.6 l)
Ground Clearance 14 in. (35.6 cm)
Machine Dimensions (LxWxH) 84.8 x 47.5 x 51.8 in. (215.4 120.6 x 131.6 cm)
Wheelbase 50 in. (127 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
General
Speedometer Digital
Odometer Digital
Colors Lime

Compare Models

Print








Year 2010
Manufacturer Arctic Cat
Model MudPro 650 H1
Style Utility
MSRP* $8,599.00
Chassis
Front Suspension Double A-Arm
Front Travel 10 in. (25.4 cm)
Front Brake Type Hydraulic Disc
Front Tires 28 x 9-14
Rear Suspension Double A-Arm
Rear Travel 10 in. (25.4 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 28 x 9-14
Frame
Dimensions/Capacities
Dry Weight 725 lbs. (328.9 kg)
Front Rack Capacity
Rear Rack Capacity 200 lbs. (90.8 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 5.7 gal (21.6 l)
Ground Clearance 14 in. (35.6 cm)
Machine Dimensions (LxWxH) 84.8 x 47.5 x 51.8 in. (215.4 120.6 x 131.6 cm)
Wheelbase 50 in. (127 cm)
Drive Train
Drive Train 2/4 WD + Diff Lock
Final Drive
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
Engine
Engine Type SOHC, 4-stroke, 4-valve
Displacement 641 cc
Bore x Stroke 98 x 85 mm
Cylinders
Engine Cooling Liquid with fan
Fuel System
Starting System
Alternator 25.0 amps
General
Speedometer Digital
Tachometer
Odometer Digital
Lighting
Colors Lime
Warranty

Current Promotions

There are currently no promotions available for this product.
