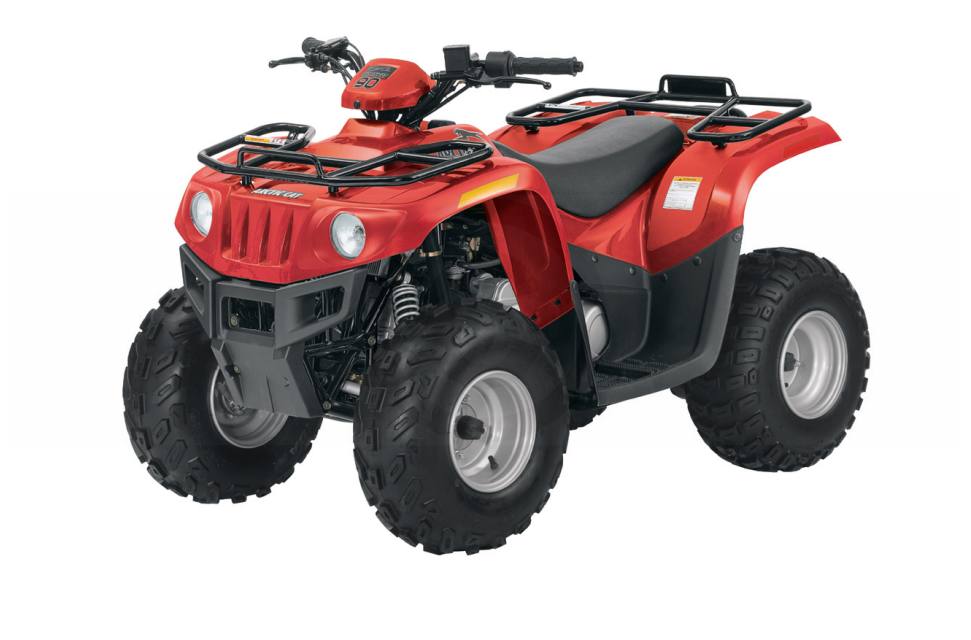

2010 Arctic Cat 90 Youth

Qty 1

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form

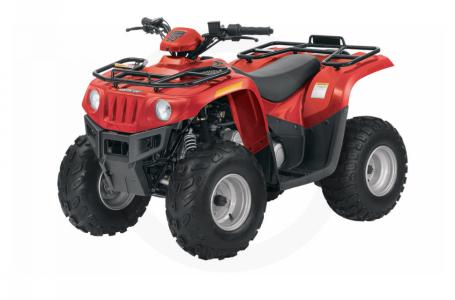

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Riding is a family affair. Give your younger ATV fanatic a machine that's as reliable as your own. A sturdy frame completely tailored to smaller riders out there. And an amazing independent front suspension that delivers a smooth ride when they're revving up the quiet 4-stroke motor during a fun outdoor journey with you. We also keep the fun factor in mind with working headlights, a taillight and a safety flag. Most importantly, this ATV comes with a speed limiter so you can adjust the machine to their abilities.

  • Independent Front Suspension - The independent single A-arm front suspension features preload adjustable shocks that soak up all the bumps and dips nature serves up.
  • Headlight - This Arctic Cat feature is one that most competitive models don't offer. Two headlights and tailligh providing you with plenty of illumination for your outdoor expedition.
  • Styling - A cool look and style that truly resembles the adult ride.
  • Youth Extras - The best way to be prepared when it comes to your youth ATV is to be overprepared. That's why we make sure that our Youth ATVs are outfitted with a Speed Limiter, which works in tandem with the throttle, limiting the unit to a predetermined speed in order to keep them safer. And our Safety Flag is there so you can keep an eye on them.
  • Duramatic™ Automatic Transmission - Durable, efficient automatic CVT is easy to operate, and transfers maximum horsepower and torque to the driveshaft. It also features a Hi/Low shift range and a long-life constant tension belt.
  • Racks - No shimmy and no shake when it comes to these durable steel racks. You've got 25 lb. capacity in front, 50 lbs. in back. That's plenty of storage with amazing strength to match. Perfect for any gear you need to haul.
Specifications
  • Displacement: 90 cc
  • Engine Type: SOHC, 4-stroke, 2-valve
  • Bore & Stroke: 47 x 51.8 mm
  • Cooling System: Air
  • Fuel Capaciy: 1.5 gal / 5.7 L
  • Transmission: Automatic CVT with EBS and Reverse
  • Drive System: 2 WD
  • Front Brakes: Drum
  • Rear Service Brakes: Hydraulic Disc
  • Front Suspension: Single A-Arm
  • Front Travel: 2.8 in / 7.1 cm
  • Rear Suspension: Swing Arm
  • Rear Travel: 2.9 in / 7.3 cm
  • Front Tires (Pressure): 20 x 7-8 (3)
  • Rear Tires (Pressure): 19 x 8-8 (3)
  • Overall Length: 57.8 in / 146.8 cm
  • Overall Width: 34.5 in / 87.6 cm
  • Overall Height: 37.9 in / 96.2 cm
  • Wheelbase: 38.4 in / 97.5 cm
  • Ground Clearance: 7.25 in / 18.4 cm
  • Dry Weight: 260 lbs / 117.9 kg
  • Color Options: Red
  • Minimum operator age: 12

Specifications

Engine
Engine Type SOHC, 4-stroke, 2-valve
Displacement 90 cc
Bore x Stroke 47 x 51.8 mm
Engine Cooling Air
Chassis
Front Suspension Single A-Arm
Front Travel 2.8 in. (7.1 cm)
Front Brake Type Drum
Front Tires 20 x 7-8
Rear Travel 2.9 in. (7.3 cm)
Rear Suspension Swing Arm
Rear Brake Type Hydraulic Disc
Rear Tires 19 x 8-8
Dimensions/Capacities
Dry Weight 260 lbs. (117.9 kg)
Fuel Capacity 1.5 gal / 5.7 L
Ground Clearance 7.25 in. (18.4 cm)
Machine Dimensions (LxWxH) 57.8 x 34.5 x 37.9 in. (146.8 x 87.6 x 96.2 cm)
Wheelbase 38.4 in. (97.5 cm)
Drive Train
Drive Train 2 WD
Transmission Automatic CVT with EBS and Reverse
General
Colors Red

Compare Models

 Print








Year 2010
Manufacturer Arctic Cat
Model 90 Youth
Style Youth
MSRP* $2,599.00
Chassis
Front Suspension Single A-Arm
Front Travel 2.8 in. (7.1 cm)
Front Brake Type Drum
Front Tires 20 x 7-8
Rear Suspension Swing Arm
Rear Travel 2.9 in. (7.3 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 19 x 8-8
Frame
Dimensions/Capacities
Dry Weight 260 lbs. (117.9 kg)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 1.5 gal / 5.7 L
Ground Clearance 7.25 in. (18.4 cm)
Machine Dimensions (LxWxH) 57.8 x 34.5 x 37.9 in. (146.8 x 87.6 x 96.2 cm)
Wheelbase 38.4 in. (97.5 cm)
Drive Train
Drive Train 2 WD
Final Drive
Transmission Automatic CVT with EBS and Reverse
Engine
Engine Type SOHC, 4-stroke, 2-valve
Displacement 90 cc
Bore x Stroke 47 x 51.8 mm
Cylinders
Engine Cooling Air
Fuel System
Starting System
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors Red
Warranty
