$13,299.00

2009 Arctic Cat Z1 Turbo Sno Pro
Request a Quote Financing Calculator Request a Brochure Financing Form

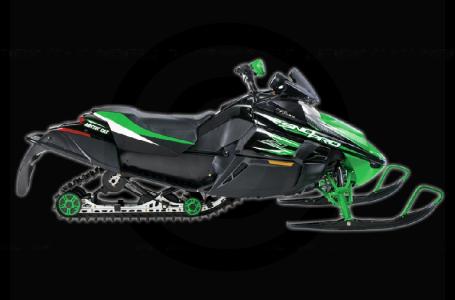

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Fast just might be an understatement. Because when you climb aboard this rocket, you're in command of the world's fastest snowmobile. At its core is a turbo-charged 4-stroke 1056cc liquid twin engine that delivers a heart-thumping 177 horsepower. And that's only the beginning. FOX® Float ski shocks handle anything you rip through while the 2" rear suspension shock shakes off any bumps. A stiffer competition suspension delivers incredibly tight handling. And the 128" Cobra track with 1.25" lugs paddles through any obstacle plus, we've added a 5" riser block on the handlebars when you need to get aggressive. Simply put, this is the sled that pushes riding beyond believing. Get to your dealer now to pick up one of these very limited edition sleds.

  • FOX® FLOAT SKI SHOCKS: FOX® Float Ski Shocks give you the ultimate in suspension performance. The shocks utilize FOX's quick-adjust load optimizing air technology and are up to 6 lbs. lighter than the conventional coil-over shock.
  • COBRA TRACK: This is the Cobra Track measuring 128" with 1.25" lugs.
  • HANDLEBAR RISER 5" TALL: The adjustable handlebar riser is 5-inches tall on the Sno Pro to give you the extra edge for aggressive riding.
  • 4 STROKE TURBOCHARGED (177 HP): The 1056cc 4-Stroke twin with Electronic Fuel Injection was already perfect, but we added an inter-cooled turbocharger. The net effect is nothing short of jaw-dropping. And this one won't be lose power at high elevation. So if you want the highest horsepower in the industry, then this is your lucky year.
  • TWIN SPAR CHASSIS: Designed and manufactured to be incredibly rigid, the Twin Spar chassis employs two box-aluminum spars triangulated with the steering supports and tunnel spars. Self-piercing rivet construction ensures joint rigidity and long-lasting strength. This year the Twin Spar chassis is “tipped” to place you in the perfect neutral riding position and lower the center of gravity. In concert with a taller seat and handlebar location, this position maximizes comfort and control in all riding conditions.
  • DELUXE GUAGE: The deluxe guage lets you choose between digital and analog speed and tach readouts. There is also an odometer, two trip meters, engine hour meter, clock, fuel level indicator, altimeter, reverse indicator and warning lights. It also serves as a hub for the optional Cat Comm communications system.
  • HEATED SEATS: The Heated Seat comes standard. Flip a switch, sit back and enjoy the ride in comfort.
  • IRP: Infinite Rider Positioning - The adjustable seat, handlebars and footrests let you find your ideal riding position. Pair IRP with the Twin Spar chassis and you can fine tune the riding position to maximize comfort in all riding conditions.
Specifications
  • Type: 4-stroke
  • Displacement (cc): 1056
  • Cooling: Liquid
  • Cylinders: Twin
  • Bore & Stroke (mm): 98 x 70
  • Lubrication: Dry sump
  • Ignition: Full transistor/coil at plug
  • Carburetion: 46 mm single throttle body EFI
  • Exhaust: Turbocharger with stainless steel
  • Drive Clutch: Arctic (roller cam) ACT drive system
  • Ski stance (in.): 43
  • Ski material: UHMW plastic saddleless
  • Front suspension: AWS VII double-wishbone A-arms with FOX® Float shocks and sway bar
  • Front travel (in.): 9.5
  • Rear suspension: Side-action frame with coupling blocks, adjustable torsion springs and FOX (IFP) shocks 2" dia. rear shock
  • Rear travel (in.): 13.5
  • Track width x length x lug (in.): 15 x 128 x 1.25 Cobra
  • Brakes: Hydraulic
  • Fuel Capacity (gal.): 10.8
  • Length x Width (in.): 118 x 47.25
  • Headlight: Dual halogen (4-bulb)
Standard Equipment
  • Digital/analog tachometer
  • Digital/analog speedometer
  • Dual stage trip odometer
  • Electric gas gauge
  • Low oil light
  • Low battery light
  • Coolant overheat light
  • Clock
  • Electric Start
  • Reverse
  • High/Low hand warmer
  • High/Low thumb warmer
  • Accessory outlet
  • Low-height windshield
  • Infinite rider positioning
  • Deluxe guage
  • Handguards
Optional Equipment
  • Mirrors
  • High & mid windshield
  • Tether switch
  • 2-passenger seat
  • Hitch
  • 2-way radio communication
  • Heated seat
  • Engine heater
Color Options
  • Pearl Cat Green with Black
NOTES:

Specifications subject to change.


Specifications

Engine
Engine Type 4-stroke
Displacement 1056 cc
Bore x Stroke 98 x 70 mm
Cylinders Twin
Engine Cooling Liquid
Carburetion 46 mm single throttle body EFI
Ignition Full transistor/coil at plug
Exhaust Turbocharger with stainless steel
Drivetrain
Brake Type Hydraulic
Drive Clutch Arctic (roller cam) ACT drive system
Suspension
Front Suspension AWS VII double-wishbone A-arms with FOX® Float shocks and sway bar
Front Travel 9.5 in.
Rear Suspension Side-action frame with coupling blocks, adjustable torsion springs and FOX (IFP) shocks 2 in. dia. rear shock
Rear Travel 13.5 in.
Ski Type UHMW plastic saddleless
Ski Stance 43 in.
Track Type Cobra
Track Dimensions 15 x 128 x 1.25 in.
General
Speedometer Digital/analog
Tachometer Digital/analog
Odometer Dual stage trip
Headlight Dual halogen (4-bulb)
Fuel Capacity 10.8 gal
Windshield Standard: Low-height; Optional: High & mid
Color Pearl Cat Green with Black
Options
Electric Start Standard
Hand & Thumb Warmers Standard
Reverse Standard
Mirrors Optional

Compare Models

 Print








Year 2009
Manufacturer Arctic Cat
Model Z1 Turbo Sno Pro
Style Performance
MSRP* $13,299.00
Drivetrain
Brake Type Hydraulic
Drive Clutch Arctic (roller cam) ACT drive system
Driven Clutch
Engine
Engine Type 4-stroke
Displacement 1056 cc
Bore x Stroke 98 x 70 mm
Cylinders Twin
Engine Cooling Liquid
Carburetion 46 mm single throttle body EFI
Ignition Full transistor/coil at plug
Exhaust Turbocharger with stainless steel
Alternator
General
Speedometer Digital/analog
Tachometer Digital/analog
Odometer Dual stage trip
Headlight Dual halogen (4-bulb)
Fuel Capacity 10.8 gal
Dry Weight
Windshield Standard: Low-height; Optional: High & mid
Color Pearl Cat Green with Black
Warranty
Options
Electric Start Standard
Hand & Thumb Warmers Standard
Reverse Standard
Mirrors Optional
Suspension
Front Suspension AWS VII double-wishbone A-arms with FOX® Float shocks and sway bar
Front Travel 9.5 in.
Rear Suspension Side-action frame with coupling blocks, adjustable torsion springs and FOX (IFP) shocks 2 in. dia. rear shock
Rear Travel 13.5 in.
Ski Type UHMW plastic saddleless
Ski Stance 43 in.
Track Type Cobra
Track Dimensions 15 x 128 x 1.25 in.
