New Units » Polaris Industries » Scrambler® 500 4X4
Model Quick Search

$6,299.00

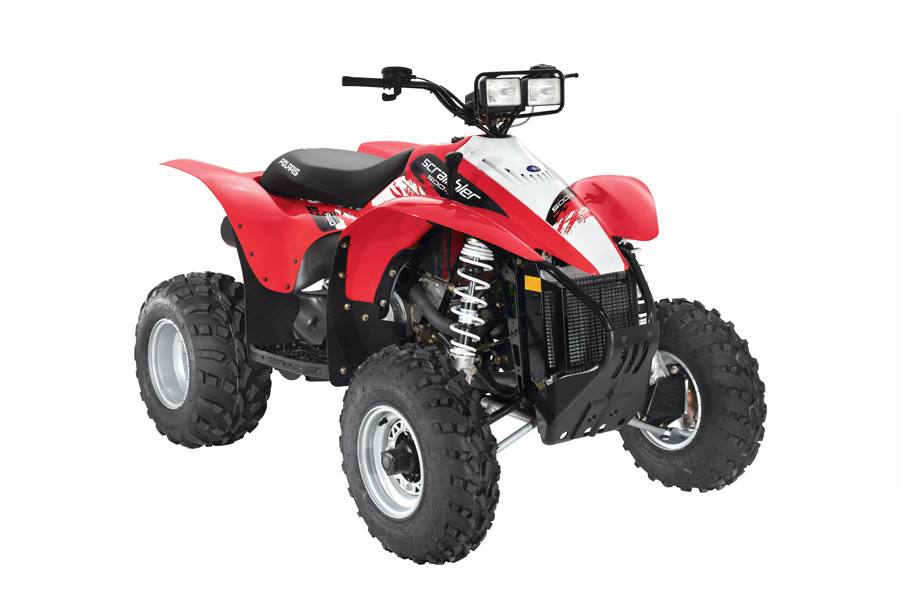

2009 Polaris Industries Scrambler® 500 4X4
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

ATVs that are Fun to Ride. This is the pioneet of 4x4 sport quads, and all-around incredibly performing ATV for trail riding where you need big, reliable power and traction.

  • 500 High-Output (H.O.) 4-Valve, 4-Stroke Liquid-Cooled Engine
  • On-Demand True AWD: The Polaris exclusive AWD automatically engages all wheels and reverts back to 2WD when you don't.
  • Automatic Transmission with Forward, Neutral and Reverse
  • Single-Lever Braking System
  • Long-Travel rear Suspension
Engine
  • Engine Type: 4-Stroke
  • Displacement: 498 cc
  • Carburetation: 40mm CV Mikuni
  • Cooling Type: Liquid
  • Starting Type: Electric
Drivetrain
  • Final Drive: Concentric Chain (Rear) Shaft (Front)
  • Transmission: F/N/R
  • Drive System: Automatic PVT, 2WD/AWD
  • Engine Braking System: Accessory
Suspension
  • Front Suspension: MacPherson Strut with 8.2 in. / 20.8 cm travel
  • Rear Suspension: Progressive rate swing arm with, 10.5 in. / 26.7 cm travel
Brakes
  • Front Brake: Dual Hydraulic Disc
  • Rear Brake: Hydraulic Disc
Tires/Wheels
  • Front Tires: 23 x 7-10
  • Rear Tires: 22 x 11-10
  • Wheels: Stamped Steel
Dimensions
  • Wheelbase: 48 in. / 121.9 cm
  • Dry Weight: 571 lbs. / 259 kg
  • Length: 75 in. / 190.5 cm
  • Width: 46 in. / 116.8 cm
  • Height: 47 in. / 119.4 cm
  • Seat Height: 34 in. / 86.4 cm
Capacities
  • Fuel Capacity: 3.5 gal / 13.2 l
  • Hitch Towing Capacity: Accessory
Instrumentation
  • N/R Lights
  • Fuel Gauge
  • Hi Temp Light
Colors
  • Indy Red/White

Specifications

Engine
Engine Type 4-Stroke
Displacement 499 cc
Engine Cooling Liquid
Fuel System 40 mm CV Mikuni
Starting System Electric
Chassis
Front Suspension MacPherson Strut
Front Travel 8.2 in. (20.8 cm)
Front Brake Type Dual Hydraulic Disc
Front Tires 23 x 7-10
Rear Travel 10.5 in. (26.7 cm)
Rear Suspension Progressive rate swing arm
Rear Brake Type Hydraulic Disc
Rear Tires 22 x 11-10
Dimensions/Capacities
Dry Weight 571 lbs. (259 kg)
Front Rack Capacity 8.2 in. (20.8 cm)
Fuel Capacity 3.5 gal (13.2 l)
Ground Clearance 5.5 in. (14 cm)
Machine Dimensions (LxWxH) 75 x 46 x 47 in. (190.5 x 116.8 x 119.4 cm)
Wheelbase 48 in. (121.9 cm)
Drive Train
Drive Train Automatic PVT, 2WD/AWD
Final Drive Concentric Chain (Rear) Shaft (Front)
Transmission F/N/R
General
Colors Indy Red/White

Compare Models

 Print








Year 2009
Manufacturer Polaris Industries
Model Scrambler® 500 4X4
Style Sport
MSRP* $6,299.00
Chassis
Front Suspension MacPherson Strut
Front Travel 8.2 in. (20.8 cm)
Front Brake Type Dual Hydraulic Disc
Front Tires 23 x 7-10
Rear Suspension Progressive rate swing arm
Rear Travel 10.5 in. (26.7 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 22 x 11-10
Frame
Dimensions/Capacities
Dry Weight 571 lbs. (259 kg)
Front Rack Capacity 8.2 in. (20.8 cm)
Rear Rack Capacity
Towing Capacity
Fuel Capacity 3.5 gal (13.2 l)
Ground Clearance 5.5 in. (14 cm)
Machine Dimensions (LxWxH) 75 x 46 x 47 in. (190.5 x 116.8 x 119.4 cm)
Wheelbase 48 in. (121.9 cm)
Drive Train
Drive Train Automatic PVT, 2WD/AWD
Final Drive Concentric Chain (Rear) Shaft (Front)
Transmission F/N/R
Engine
Engine Type 4-Stroke
Displacement 499 cc
Bore x Stroke
Cylinders
Engine Cooling Liquid
Fuel System 40 mm CV Mikuni
Starting System Electric
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors Indy Red/White
