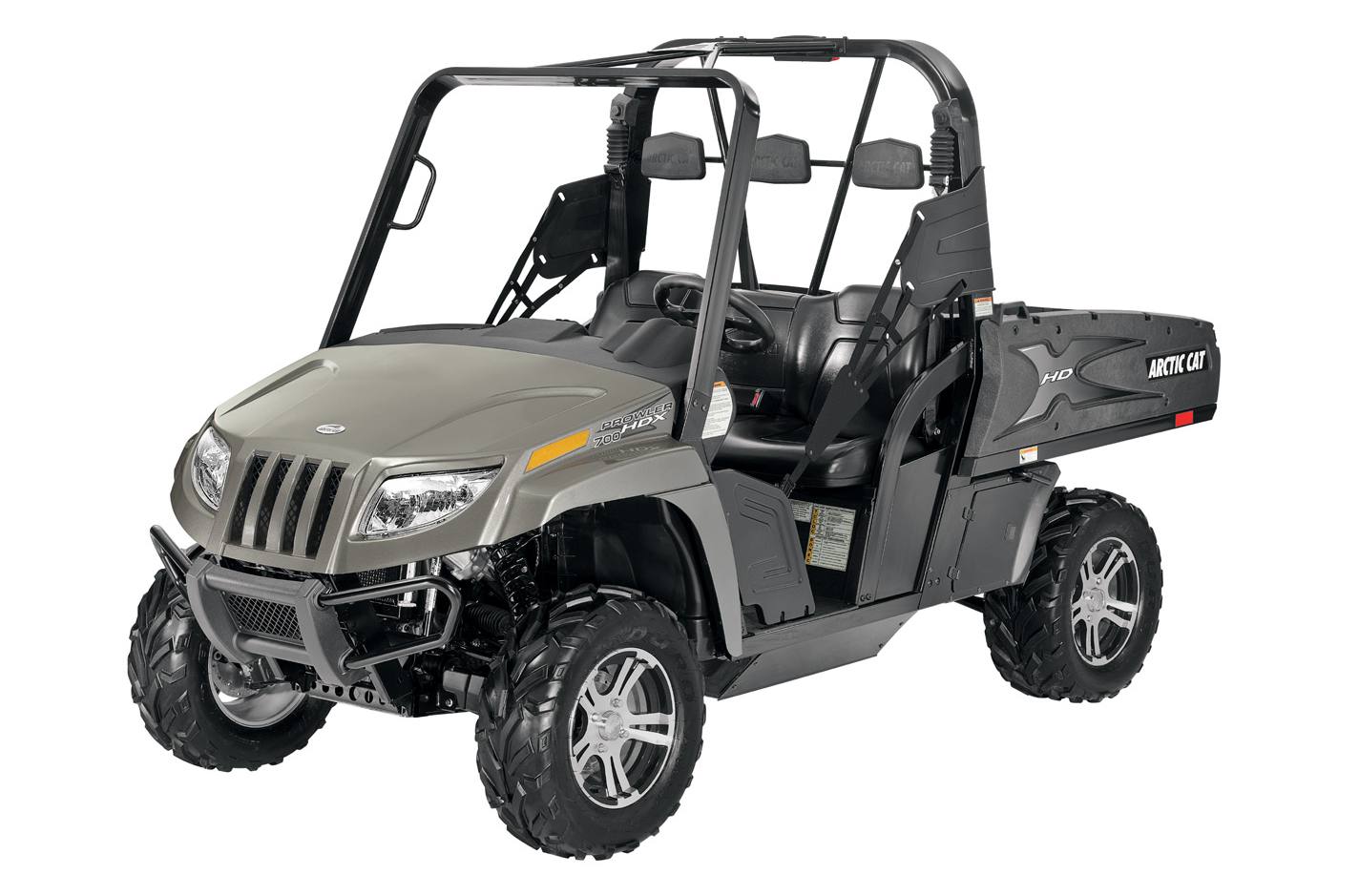

2011 Arctic Cat Prowler HDX 700

Qty 2

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Could this be the perfect Prowler®? All signs point to yes. A workhorse through and through, the Prowler HDX 700 is designed to take on the heavy-duty, hardworking role in your life.


Its 4-stroke, liquid-cooled, 695cc engine will bolster you to take the outdoors head-on, while its generous storage capacity lets you take all of your toys along. Its transformable rear cargo box hauls up to 1,000 lbs. and comes with removable sides to create a convenient flat bed whenever you need it. Plus, you've got plenty of room to stash tools or ride gear in the dashboard glove box, side compartments or the underhood storage.


When it comes to cool, new features, the HDX screams performance. Start with a new 3-passenger seat, giving your buddies more reason to tag along. FOX Float® coil-over shocks supply you with the perfect preloaded stability, no matter what the terrain dishes out. And its new power steering system with tilt steering wheel improves the rider experience with reduced steering torque and a smooth, confident ride.


Whether you've got work or play in your future, this is the perfect Prowler for you.

  • HDX Rear Cargo
  • Deluxe Digital/Analog Gauge
  • Power Steering
  • 14" Machined Aluminum Wheels
  • Tilt Steering Wheel
  • Adjustable FOX Float® coil-over rear shocks
  • 3-Passenger Seating
Engine
  • Displacement: 695 cc
  • Engine Type: SOHC, 4-stroke, 4-valve w/EFI
  • Bore & Stroke: 102 mm x 85 mm
  • Cooling System: Liquid with fan
  • Fuel Capacity: 8.2 gal. (31 l)
  • Alternator Capacity: 25.0 amps
  • Speedometer: Analog
  • Odometer: Digital
Powertrain
  • Transmission: Automatic CVT with EBS, Hi/Lo Range and Reverse
  • Drive System: 2/4 WD + Electric Diff Lock
  • Front Brakes: Hydraulic Disc
  • Rear Service Brakes: Hydraulic Disc
Suspension
  • Front Suspension: Double A-Arm
  • Front Travel: 10 in. (25.4 cm)
  • Rear Suspension: Double A-Arm
  • Rear Travel: 10 in. (25.4 cm)
  • Front Tires: 26 x 9-14
  • Rear Tires: 26 x 11-14
Dimensions
  • Overall Length: 129 in. (327.7 cm)
  • Overall Width: 60 in. (152.4 cm)
  • Overall Height: 76.5 in. (194.3 cm)
  • Wheelbase: 85 in. (215.9 cm)
  • Ground Clearance: 10 in. (25.4 cm)
  • Dry Weight: 1,363 lbs. (619.55 kg)
Towing/Hauling
  • Rear Box Storage Capacity: 1,000 lbs. (454.5 kg)
  • Underhood Capacity: 25 lbs. (11.34 kg)
  • Towing Capacity: 1,500 lbs. (681.82 kg)
Special Features
  • FOX Float Coil-Over Shocks
  • 3-Passenger Seat
  • Transformable Rear Cargo Box
  • Power Steering with Tilt Steering Wheel
  • Dashboard Shift Lever with Park
  • Side Storage Compartments
  • Aluminum Wheels
Color
  • Color: Tungsten Metallic Paint

Specifications

Engine
Engine Type SOHC, 4-stroke, 4-valve w/EFI
Displacement 695 cc
Bore and Stroke 102 mm x 85 mm
Cooling Liquid with fan
Fuel System EFI
Chassis
Front Suspension Double A-Arm
Front Brakes Hydraulic Disc
Front Tire 26 x 9-14
Rear Suspension Double A-Arm
Rear Brakes Hydraulic Disc
Rear Tire 26 x 11-14
Dimensions
Dry Weight 1,363 lbs. (619.55 kg)
Front Travel 10 in. (25.4 cm)
Fuel Capacity 8.2 gal. (31 l)
Rear Travel 10 in. (25.4 cm)
Wheelbase 85 in. (215.9 cm)
Ground Clearance 10 in. (25.4 cm)
Box Capacity 1,000 lbs. (454.5 kg)
Towing Capacity 1,500 lbs. (681.82 kg)
Transmission
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
Drive System 2/4 WD + Electric Diff Lock
General
Speedometer Analog
Odometer Digital
Colors Tungsten Metallic Paint

Compare Models

 Print








Year 2011
Manufacturer Arctic Cat
Model Prowler HDX 700
Style Side x Side
MSRP* $13,499.00
Chassis
Front Suspension Double A-Arm
Front Brakes Hydraulic Disc
Front Tire 26 x 9-14
Rear Suspension Double A-Arm
Rear Brakes Hydraulic Disc
Rear Tire 26 x 11-14
Dimensions
Dry Weight 1,363 lbs. (619.55 kg)
Front Travel 10 in. (25.4 cm)
Fuel Capacity 8.2 gal. (31 l)
Rear Travel 10 in. (25.4 cm)
Wheelbase 85 in. (215.9 cm)
Ground Clearance 10 in. (25.4 cm)
Box Capacity 1,000 lbs. (454.5 kg)
Rack Capacity
Towing Capacity 1,500 lbs. (681.82 kg)
Engine
Engine Type SOHC, 4-stroke, 4-valve w/EFI
Displacement 695 cc
Bore and Stroke 102 mm x 85 mm
Cooling Liquid with fan
Compression Ratio
Fuel System EFI
Ignition
General
Speedometer Analog
Tachometer
Odometer Digital
Colors Tungsten Metallic Paint
Warranty
Transmission
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
Drive System 2/4 WD + Electric Diff Lock
