New Units » Arctic Cat » Prowler XT 550
Model Quick Search

$10,999.00
$10,999.00
$.00

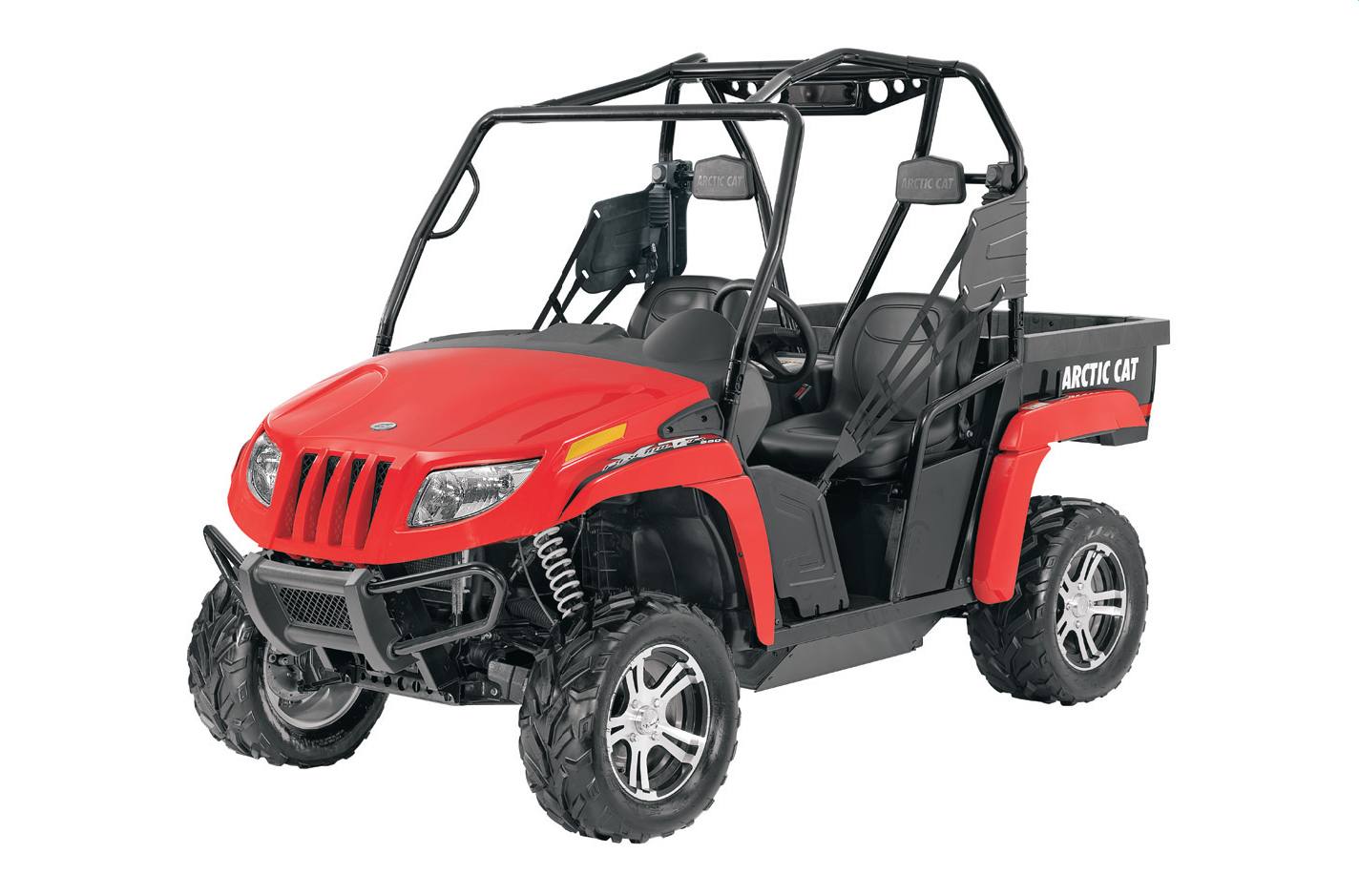

2011 Arctic Cat Prowler XT 550

1 Red 1 Lime

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Box Capacity
  • Underhood Storage
  • Towing Capacity
  • Electric 2WD/4WD and Front Differential Lock
  • Digital Gauge
  • Fully Independent Suspension
  • Duramatic™ Automatic Transmission
Engine
  • Displacement: 545 cc
  • Engine Type: SOHC, 4-stroke, 4-valve w/EFI
  • Bore & Stroke: 92 mm x 82 mm
  • Cooling System: Liquid with fan
  • Fuel Capacity: 8.2 gal. (31 l)
  • Alternator Capacity: 25.0 amps
  • Speedometer: Digital
  • Odometer: Digital
Powertrain
  • Transmission: Automatic CVT with EBS, Hi/Lo Range and Reverse
  • Drive System: 2/4 WD + Electric Diff Lock
  • Front Brakes: Hydraulic Disc
  • Rear Service Brakes: Hydraulic Disc
Suspension
  • Front Suspension: Double A-Arm
  • Front Travel: 10 in. (25.4 cm)
  • Rear Suspension: Double A-Arm
  • Rear Travel: 10 in. (25.4 cm)
  • Front Tires: 26 x 9-14
  • Rear Tires: 26 x 11-14
Dimensions
  • Overall Length: 118.75 in. (301.63 cm)
  • Overall Width: 61.5 in. (156.21 cm)
  • Overall Height: 79 in. (200.6 cm)
  • Wheelbase: 75 in. (190.50 cm)
  • Ground Clearance: 10 in. (25.4 cm)
  • Dry Weight: 1,230 lbs. (557.9 kg)
Towing/Hauling
  • Rear Box Storage Capacity: 600 lbs. (272.15 kg)
  • Underhood Capacity: 25 lbs. (11.34 kg)
  • Towing Capacity: 1,500 lbs. (680.4 kg)
Special Features
  • Aluminum Wheels
Color
  • Colors: Green, Red, or Lime

Specifications

Engine
Engine Type SOHC, 4-stroke, 4-valve w/EFI
Displacement 545 cc
Bore and Stroke 92 mm x 82 mm
Cooling Liquid with fan
Fuel System EFI
Chassis
Front Suspension Double A-Arm
Front Brakes Hydraulic Disc
Front Tire 26 x 9-14
Rear Suspension Double A-Arm
Rear Brakes Hydraulic Disc
Rear Tire 26 x 11-14
Dimensions
Dry Weight 1,230 lbs. (557.9 kg)
Front Travel 10 in. (25.4 cm)
Fuel Capacity 8.2 gal. (31 l)
Rear Travel 10 in. (25.4 cm)
Wheelbase 75 in. (190.50 cm)
Ground Clearance 10 in. (25.4 cm)
Box Capacity 600 lbs. (272.15 kg)
Towing Capacity 1,500 lbs. (680.4 kg)
Transmission
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
Drive System 2/4 WD + Electric Diff Lock
General
Speedometer Digital
Odometer Digital
Colors Green, Red, or Lime

Compare Models

 Print








Year 2011
Manufacturer Arctic Cat
Model Prowler XT 550
Style Side x Side
MSRP* $10,999.00
Chassis
Front Suspension Double A-Arm
Front Brakes Hydraulic Disc
Front Tire 26 x 9-14
Rear Suspension Double A-Arm
Rear Brakes Hydraulic Disc
Rear Tire 26 x 11-14
Dimensions
Dry Weight 1,230 lbs. (557.9 kg)
Front Travel 10 in. (25.4 cm)
Fuel Capacity 8.2 gal. (31 l)
Rear Travel 10 in. (25.4 cm)
Wheelbase 75 in. (190.50 cm)
Ground Clearance 10 in. (25.4 cm)
Box Capacity 600 lbs. (272.15 kg)
Rack Capacity
Towing Capacity 1,500 lbs. (680.4 kg)
Engine
Engine Type SOHC, 4-stroke, 4-valve w/EFI
Displacement 545 cc
Bore and Stroke 92 mm x 82 mm
Cooling Liquid with fan
Compression Ratio
Fuel System EFI
Ignition
General
Speedometer Digital
Tachometer
Odometer Digital
Colors Green, Red, or Lime
Warranty
Transmission
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
Drive System 2/4 WD + Electric Diff Lock

Current Promotions

There are currently no promotions available for this product.
