New Units » Arctic Cat » 366 SE
Model Quick Search

$5,999.00
$5,649.00
$350.00

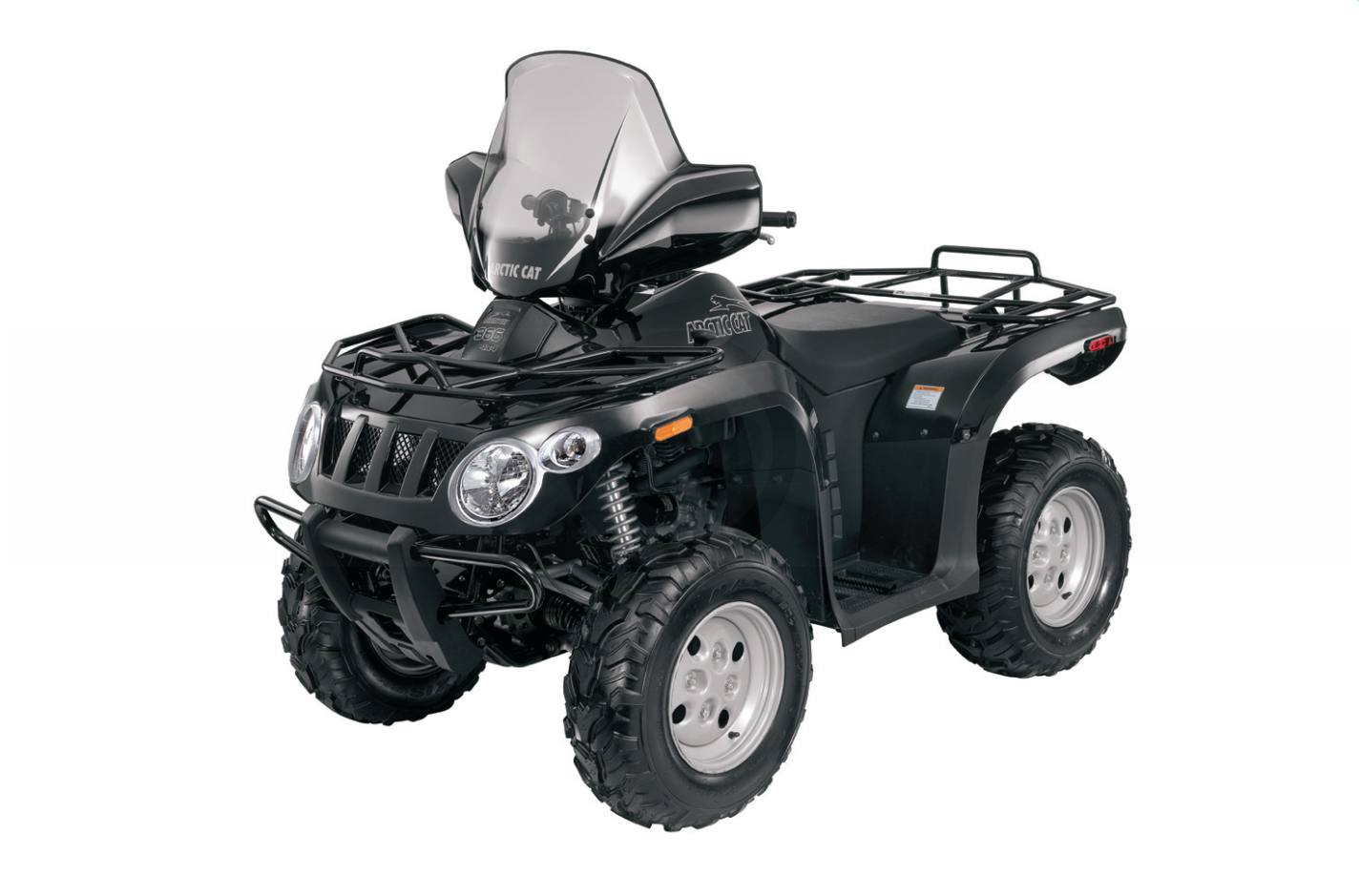

2010 Arctic Cat 366 SE

Qty 1

Now until September 30, 2010
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Everything about this ATV screams "trail-voyager." Take the reins with the 366 SE and those paths will smooth out before you thanks to the fully independent suspension. And the 4-stroke, 366cc H1 engine doles out the power while easing through corners, giving even the novice riders more confidence to take this sporty ATV out into the great outdoors. Sturdy and stylish framework, rugged rack capacity. And a touring windshield that's not only made of high-density-polyethylene, but also includes a dashboard for mounting your GPS or cell phone. Fun becomes the name of the game when you take the trail with the style and durability of the 366 SE.

  • Fully Independent Suspenion - The A-arm fully independent suspension with preload adjustable shocks gives you 7" of suspension travel and 10" of ground clearance. Your confidence to tackle rugged terrain and handle tight turns on the trail will grow with every outdoor excursion.
  • 366 H1 Engine - The 366cc, air & oil-cooled engine features a single overhead cam and a single cylinder. The "H" stands for its hemispherical-shaped heads, which deliver more efficient combustion resulting in better performance. Don't let this efficient power plant fool you. It's got plenty of snap when you hit the throttle.
  • Duramatic™ Automatic Transmission - Durable, efficient automatic CVT is easy to operate, and transfers maximum horsepower and torque to the driveshaft. It also features a Hi/Low shift range, spike load dampener and a long-life, constant tension belt.
  • Digital Gauge - Digital speedometer reading with integrated warning system includes a clock, dual tripmeter, gear indicator and hour meter.
  • Electric 2WD/4WD - Provides traction control by the use of true four-wheel drive. Go from 2WD to 4WD on the fly with a flip of a switch when you forsee the rough stuff in your future.
  • Rack Capacity - Category-leading weight capacity and overall carrying surface area, 75 lb. capacity in front and 150 lbs. rear. Our SpeedRack® in the rear allows quick installation and removal of a wide variety of Arctic Cat® accessories.
  • Metallic Black Paint - Stunning Metallic Black paint job with the vibe of today's hot automotive colors. This awesome finish is incredibly durable, so don't worry about running this machine through mud, sand or woods. It'll come clean in the wash and maintain that beutiful shine.
Specifications
  • Displacement: 366 cc
  • Engine Type: SOHC, 4-stroke, 4-valve
  • Bore & Stroke: 81 x 71.2 mm
  • Cooling System: Air & oil cooled
  • Fuel Capaciy: 4.3 gal / 16.3 L
  • Alternator Capacity: 18.0 amps
  • Speedometer: Digital
  • Odometer: Digital
  • Transmission: Automatic CVT with EBS, Hi/Lo Range and Reverse
  • Drive System: 2/4 WD
  • Front Brakes: Hydraulic Disc
  • Rear Service Brakes: Hydraulic Disc
  • Front Suspension: Double A-Arm
  • Front Travel: 7 in / 17.8 cm
  • Rear Suspension: Double A-Arm
  • Rear Travel: 7 in / 17.8 cm
  • Front Tires (Pressure): 24 x 8-12 (4)
  • Rear Tires (Pressure): 24 x 10-12 (4)
  • Color: Metallic Black Paint
  • Overall Length: 81 in / 205.7 cm
  • Overall Width: 44 in / 11.8 cm
  • Overall Height: 46.6 in / 118.4 cm w/o windshield
  • Wheelbase: 48 in / 121.9 cm
  • Ground Clearance: 10 in / 25.4 cm
  • Dry Weight: 570 lbs / 258.5 kg
  • Front Rack Capacity: 75 lbs / 34 kg
  • Rear Rack Capacity: 150 lbs / 68.1 kg
  • Towing Capacity: 1,050 lbs / 476.3 kg
  • Special Features: Windshield

Specifications

Engine
Engine Type SOHC, 4-stroke, 4-valve
Displacement 366 cc
Bore x Stroke 81 x 71.2 mm
Engine Cooling Air & oil cooled
Alternator 18.0 amps
Chassis
Front Suspension Double A-Arm
Front Travel 7 in. (17.8 cm)
Front Brake Type Hydraulic Disc
Front Tires 24 x 8-12 (4)
Rear Travel 7 in. (17.8 cm)
Rear Suspension Double A-Arm
Rear Brake Type Hydraulic Disc
Rear Tires 24 x 10-12 (4)
Dimensions/Capacities
Dry Weight 570 lbs. (258.5 kg)
Front Rack Capacity 75 lbs. (34 kg)
Rear Rack Capacity 150 lbs. (68.1 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 4.3 gal (16.3 l)
Ground Clearance 10 in. (25.4 cm)
Machine Dimensions (LxWxH) 81 in. (205.7 cm) x 44 in. (11.8 cm) x 46.6 in. (118.4 cm)
Wheelbase 48 in. (121.9 cm)
Drive Train
Drive Train 2/4 WD
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
General
Speedometer Digital
Odometer Digital
Colors Metallic Black Paint

Compare Models

 Print








Year 2010
Manufacturer Arctic Cat
Model 366 SE
Style Utility
MSRP* $5,999.00
Chassis
Front Suspension Double A-Arm
Front Travel 7 in. (17.8 cm)
Front Brake Type Hydraulic Disc
Front Tires 24 x 8-12 (4)
Rear Suspension Double A-Arm
Rear Travel 7 in. (17.8 cm)
Rear Brake Type Hydraulic Disc
Rear Tires 24 x 10-12 (4)
Frame
Dimensions/Capacities
Dry Weight 570 lbs. (258.5 kg)
Front Rack Capacity 75 lbs. (34 kg)
Rear Rack Capacity 150 lbs. (68.1 kg)
Towing Capacity 1,050 lbs. (476.3 kg)
Fuel Capacity 4.3 gal (16.3 l)
Ground Clearance 10 in. (25.4 cm)
Machine Dimensions (LxWxH) 81 in. (205.7 cm) x 44 in. (11.8 cm) x 46.6 in. (118.4 cm)
Wheelbase 48 in. (121.9 cm)
Drive Train
Drive Train 2/4 WD
Final Drive
Transmission Automatic CVT with EBS, Hi/Lo Range and Reverse
Engine
Engine Type SOHC, 4-stroke, 4-valve
Displacement 366 cc
Bore x Stroke 81 x 71.2 mm
Cylinders
Engine Cooling Air & oil cooled
Fuel System
Starting System
Alternator 18.0 amps
General
Speedometer Digital
Tachometer
Odometer Digital
Lighting
Colors Metallic Black Paint
Warranty
